Project Description

Description

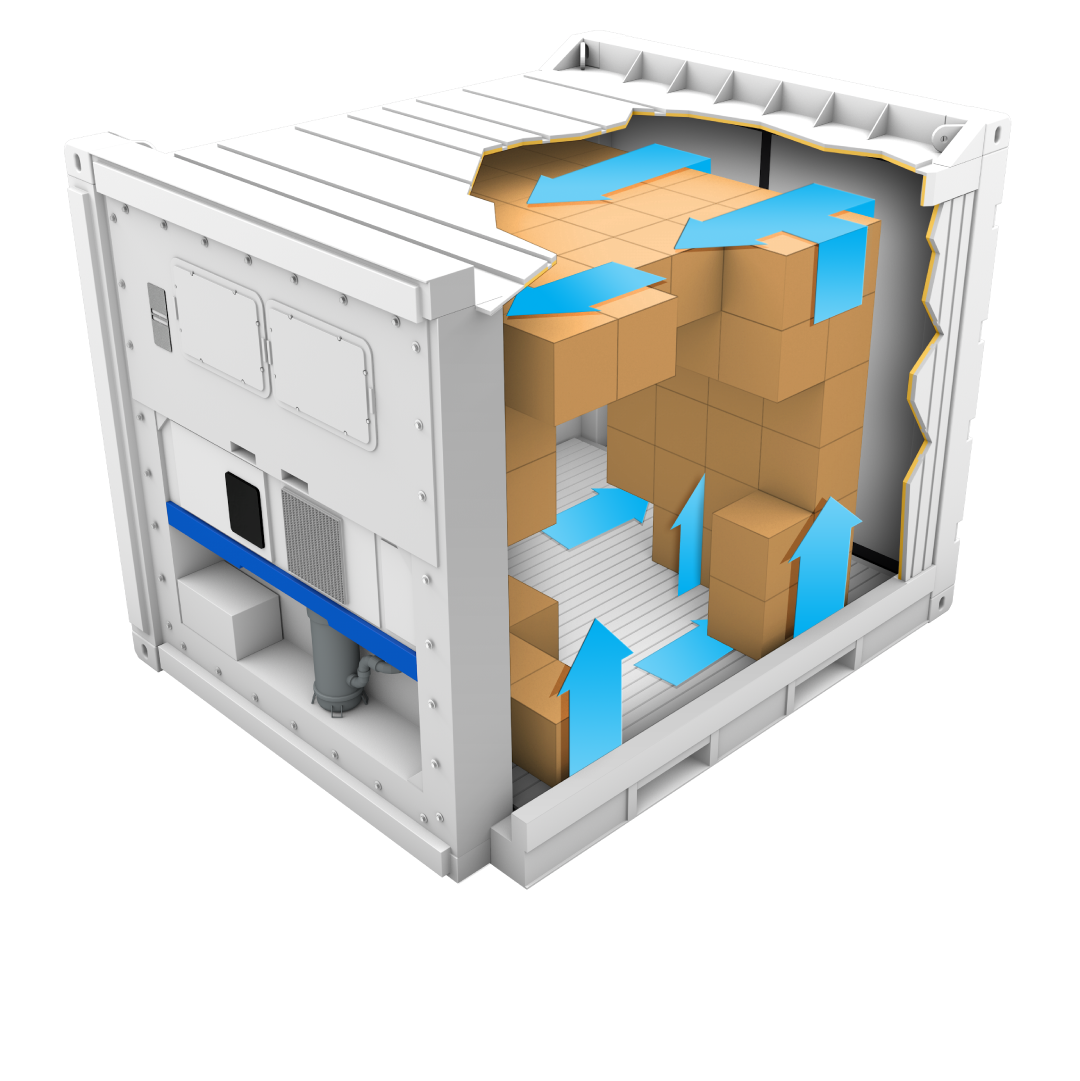

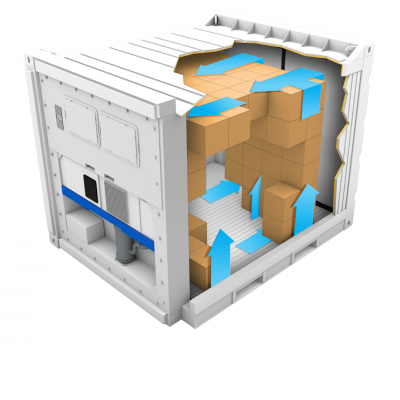

The refrigerated container provides consistent chilled or frozen temperatures for food transportation and storage, and can be used either as a chiller or freezer. The fresh air renewal ensures freshness and extended shelf-life for perishables.

Our containers are manufactured in accordance to DNV2.7-1 and EN12079 offshore container standards, with certified slings and shackles.

Specifications

Specifications Details
Standards DNV 2.7-1 / EN12079 (10 ft reefer only)

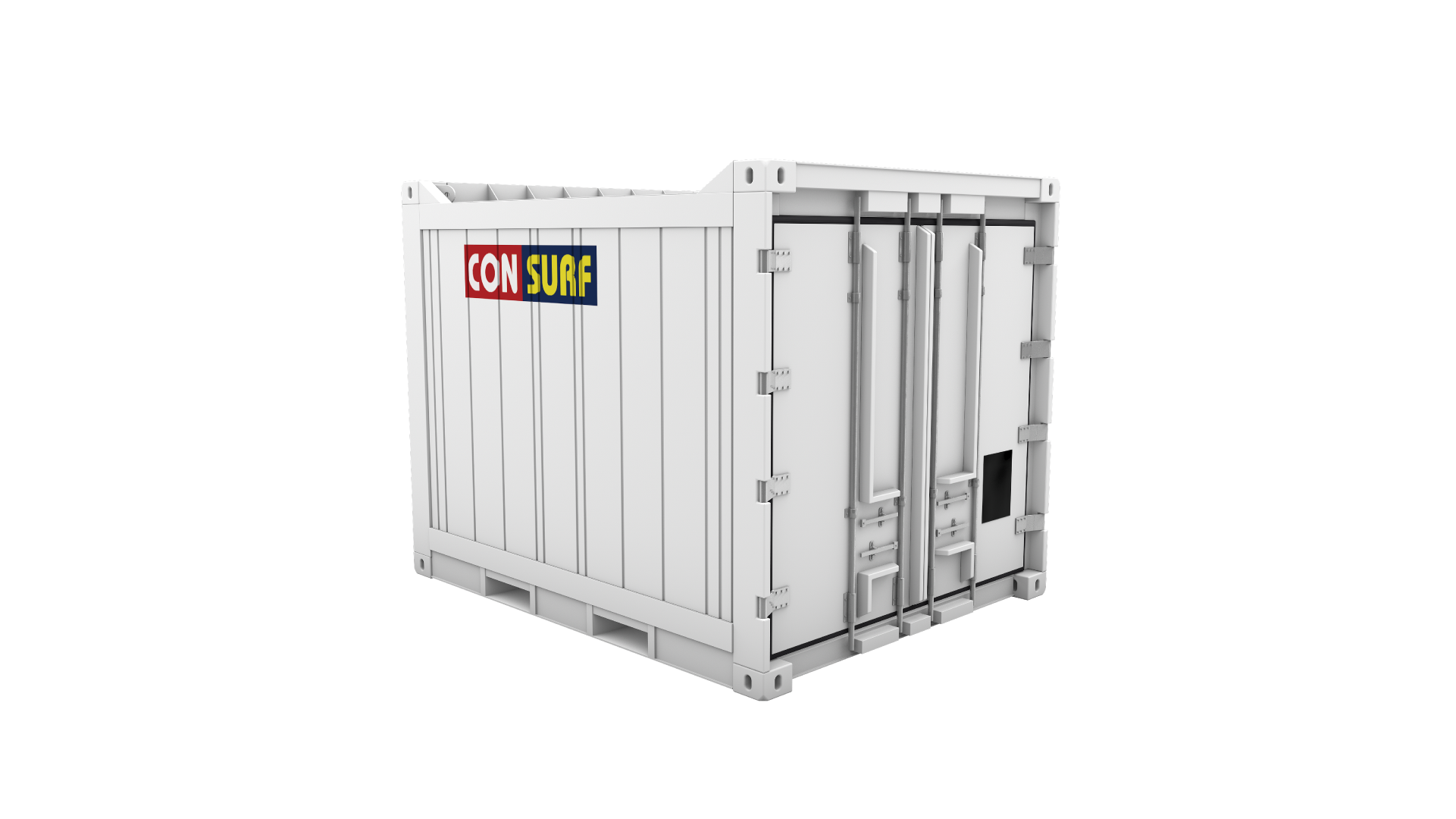

Dimensions 10 ft Reefer – 2,991 mm x 2,438 mm x 2,591 mm

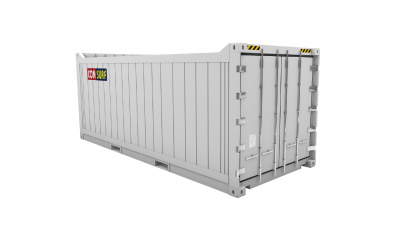

20 ft Reefer – 6,058 mm x 2,438 mm x 2,896 mm
Storage (internal) Capacity 10 ft Offshore Reefer – 11.86 m³
20 ft Standard Reefer – 32.3 m³
Standard Colour HMP 25840
Tare (Unladen) Weight 10 ft Offshore Reefer – 3,080 kg
20 ft Standard Reefer – 2,600 kg
Allowable Payloads 10 ft Offshore Reefer – 6,920 kg
20 ft Standard Reefer – 27,880 kg
Max Gross Weight 10 ft Offshore Reefer – 10,000 kg
20 ft Offshore Reefer – 30,480 kg
Refrigeration Equipment Carrier Transicold 69NT40 Unit

Gallery
